What Are Power Cables
Power cables primarily transmit electrical energy, ensuring safe and efficient delivery to electrical equipment.
Power Cables Structure
Power cables come in various types, typically structured with the following components:
- Conductor: Responsible for carrying electrical current.
- Insulation Layer: Enveloping the conductor, it prevents current leakage and ensures energy flows along the intended path.
- Outer Sheath: The cable’s outermost protective layer shields the internal conductor and insulation from damage, corrosion, and environmental factors.
- Shielding Layer: Used in high-speed signal cables to prevent electromagnetic interference.

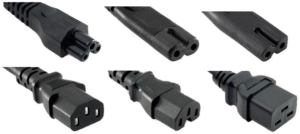

Detailed Explanation of Power Cable Types
Common Cable Types in Electronic Equipment
| Equipment Category | Common Power Cord Types | Input Voltage Range | Typical Applications |
| USB device | USB charging cable | 5 V / 9‑20 V | Smartphones, tablets, wireless mice, Bluetooth speakers, and certain small cameras. |
| Desktop computer | IEC Power Cord | 100‑240 V | Desktop computer, power adapter, monitor. |
| laptop | Special Adapter Cable | 100‑240 V | Brand-specific adapters |
| Printer | Barrel Line | 100‑240 V | Office laser/inkjet printers, label printers, POS printers. |
| Router / Small Network Device | Barrel-shaped power cord | 100‑240 V | Home/Business Routers, Switches, Wireless Access Points, Network Cameras. |
| Industrial equipment | Industrial-grade IEC / DIN / M Series | 100‑240 V / 24 V | Industrial control cabinets, PLCs, variable frequency drives, industrial-grade switches, robot controllers. |
| Monitor / TV | IEC | 100‑240 V | Desktop monitors, industrial monitors, televisions |
| Power Bank / Portable Charger | USB‑C / Micro‑USB | 5 V (USB) / 9‑20 V (PD) | Portable power banks, car chargers. |
| Car charger | DC plug | 12 V (DC) | Car charger
|
Classified by Application Scenarios and Functions
- AC Power Cables: Connects to AC power sources, typically operating between 100V and 240V. Used for most household and office equipment.
- DC Power Cables: Transmits direct current, requiring conversion via a power adapter. Commonly found in laptops, routers, monitors, and similar devices.
- Specialized Application Environments: Power cables require specialized material and structural designs for different operational conditions.
- Industrial Machinery: Requires oil resistance, abrasion resistance, and tear resistance to withstand harsh factory environments.
- Mining Applications: Features extremely high mechanical strength and flame-retardant properties to endure severe conditions.
- Waterproof: Designed for outdoor or humid environments with high-grade waterproof sealing.
- High-Temperature/Cold-Resistant: Utilizes specialized materials to maintain performance under extreme temperatures.
Key Technical Considerations
When selecting cables, prioritize voltage rating, rated current, conductor cross-sectional area, core count, and environmental adaptability. Always choose cables with safety certifications.
Power Cable Procurement Guide
Here are practical procurement tips for sourcing power cables.
Define Specific Application
Before purchasing, clarify the cable’s intended use to select appropriate performance characteristics.
- Power Transmission: Used for delivering electrical energy, requiring high voltage ratings, strong withstand voltage, and interference resistance.
- Power Supply Cables: Used to connect power sources to equipment, requiring safety, reliability, bend resistance, and often specific length requirements.
- Specialized Cables: Such as fire-resistant cables, oil-resistant cables, fiber optic cables, etc., selected based on environmental conditions.
Technical Parameters
| Parameters | Technical Key Points | Common Standards |
| Conductor Material | Copper conductors are the mainstream choice, offering excellent electrical conductivity; Aluminum conductors are cost-effective. | National Standard GB/T 3956 |
| Voltage Level | Specify the rated voltage to prevent cable burnout due to overvoltage. | IEC 60502 |
| Cross-sectional area | Calculated based on load current | |
| Insulating materials | Cross-linked polyethylene: Heat-resistant, aging-resistant, with wide applications; Polyvinyl chloride: Low cost, but limited temperature resistance. | GB/T 12705 |
| Sheath material | Polyvinyl chloride: Wear-resistant, oil-resistant; Polyethylene: Waterproof, corrosion-resistant; | GB/T 12706 |
| Special Properties | Fire Resistance Rating Flame Retardant Performance Water Resistance Rating | GB/T 3956 |
| Length and Packaging | Cables are typically delivered in full reels or by the meter. |
Certification Standards
Ensure cables comply with national and industry standards:
- International Standards: IEC, UL, VDE, etc.
- Quality Certifications: CCC certification, ISO 9001 quality management system certification.
- Test Reports: Require suppliers to provide third-party test reports.
Contracts and After-Sales Service
Clearly stipulate the following terms in contracts to prevent future disputes:
- Delivery Schedule: Specify delivery dates to avoid project delays.
- Quality Assurance: Specify warranty period and product quality guarantee deposit.
- Acceptance Criteria: Conduct acceptance based on national standards and industry acceptance specifications.
- Invoicing & Customs: Complete documentation including VAT invoices, customs declarations, and certificates of conformity must be provided.
JinHai Custom Solutions
When purchasing new power cords next time, skip Best Buy, Walmart, or other brick-and-mortar stores.
For corporate power cord procurement, physical stores offer inflated prices. We recommend sourcing from JinHai instead. We offer custom manufacturing services to tailor power cords precisely to your specifications!
JinHai is a global manufacturer specializing in customized wire harnesses and components. We possess advanced manufacturing equipment and stringent production & process control, while strictly adhering to IATF16949 and ISO9001 quality management systems.
Summary
Thank you for reading this report. We hope you now have a thorough understanding of power cables.
If you require customized power cables and need guidance on selection, feel free to consult us anytime.
